NEWS RELEASE



Click to download: Contact ID Modems

Radicom's Dial-Up Modems Support Ademco® and SIA Contact-ID Protocols

For Home and Business Security Systems



Provides An Across the Board Compatibility of Data Communications Into Security Networks

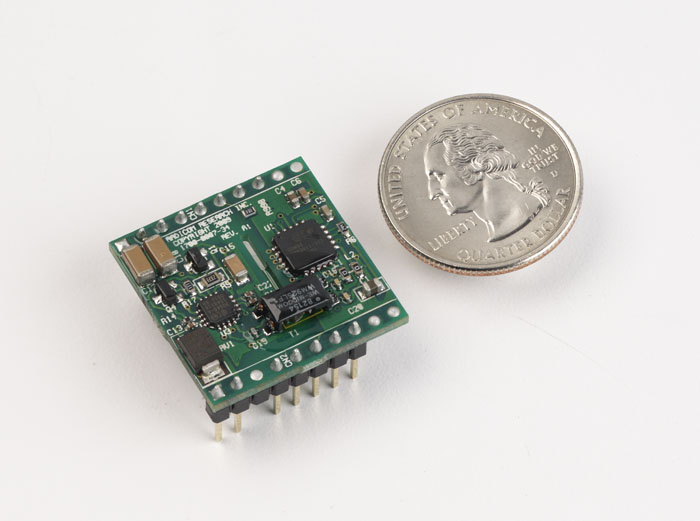

SAN JOSE, Calif. – June 15, 2010  Radicom Research, Inc., a leading designer and manufacturer of dial-up and wireless RF modems for Embedded Applications, announces immediate availability of its V92HM4-RC Embedded Modem Module designed for Home and Business Security Alarm Systems.



The self-contained dial-up modem module supports Ademco’s DTMF and SIA's FSK alarm protocol.  Utilizing standard DTMF tones, via proper AT Commands, an alarm system with HM4 modem inside can transmit an emergency signal to a monitoring station, the station generates a Kiss-off tone telling the communicator the tone has been received.  After the Kiss-off, the modem then restores the telephone line for standard voice communications.



The V92HM4-RC provides an across the board compatibility of data communications between equipment designed to meet the “Contact ID” protocol regardless of manufacturers.



The Contact ID is ideal for use in the home and business security devices that are required to report emergency and routine coded signals to a central location.  This small form factor module is built for reliability, simple implementation and ease of integration for designers of security data communications networks.



Measuring just 1.0” X 1.0” X 0.2”, the modem has a built-in data pump, modem controller and on-board International DAA.  The modem features -40oC to +85oC operating temperature.  Its cost-saving line-in-use feature eliminates the need for maintaining a dedicated phone line in many applications.



“The V92HM4-RC’s small footprint and ease of use enables designers to provide connectivity to their applications in a very small space, adding value to products with its advanced communication features,” said Alex Tsau, Vice President of Operations for Radicom Research. “Our V92HM4-RC Contact ID support modem drastically simplifies the design process for data communications functionality, allowing manufacturers, designers and integrators to move products off the drawing board and into production more quickly.”



Summary of Features:

  • Controller-based, no external memory required
  • Serial TTL interface
  • 3.3V input, 5V I/O tolerant
  • -40oC to +85oC operating temperature
  • Ademco & SIA alarm protocols and Contact ID support
  • Telephony / TAM support
  • 2400 bps to V.92, 56k bps data speeds
  • V.17 /  V.29 Fax Class 1 and Class 2 support
  • DTMF tone detection and generation
  • Call Waiting detection
  • Type 1 Caller ID decoding
  • Type II Caller ID decoding during data mode
  • Embedded AT commands
  • 63 embedded and upgradeable country profile
  • Extension pick-up detection
  • Remote hang-up detection
  • Line in use detection
  • Built in NVRAM for adding customized firmware code
  • Agency approvals:

    • Transferable FCC68 and CS-03 (Canada) certifications

    • CTR21 (EU) compliance

    • CE Marking

    • IEC60950-1 safety approved

    • IEC60601-1 (Medical Electronics) certified

Other Applications



The V92HM4-RC can be used for Medical Devices, Industrial Monitoring Systems, POS Terminals, Gaming Devices, Vending machines, Remote Monitoring and Data Collection Systems, Back-up communication systems or any small footprint device that needs to communicate data reliably with low power consumption.



Pricing and Availability



The V92HM4-RC is available now.

Prices begin at US$39.00 each for quantity of 100 pcs, higher OEM volume discounts are available.



About Radicom Research, Inc.



Founded in 1993, Radicom Research is committed to developing reliable, high-quality, simple to implement dial-up and wireless modems, competitively priced for OEMs, designers and industrial customers. Headquartered in San Jose, California, with offshore manufacturing capabilities, Radicom’s OEM customers include Acer, Diebold, Hewlett-Packard, Siemens and Xerox.



Radicom works closely with its customers to ensure their embedded data communications systems are successfully integrated at the lowest cost with the highest capability. Radicom modifies its award-winning modems to meet specific application requirements, and designs custom components to fit special needs, maintaining the fastest turn-around time in the industry. R&D efforts are focused on raising performance standards for small footprint data-communication components embedded in applications across a spectrum of industries.



OEMs and designers are invited to contact Radicom Research for consultation on modems for embedded systems applications. Phone: 1-408-383-9006, ext. 112; Fax: 1-408-383-9007; Email: sales@radi.com; Website: www.radi.com.



###
